New 100 KW Diesel W/Transfer Switch

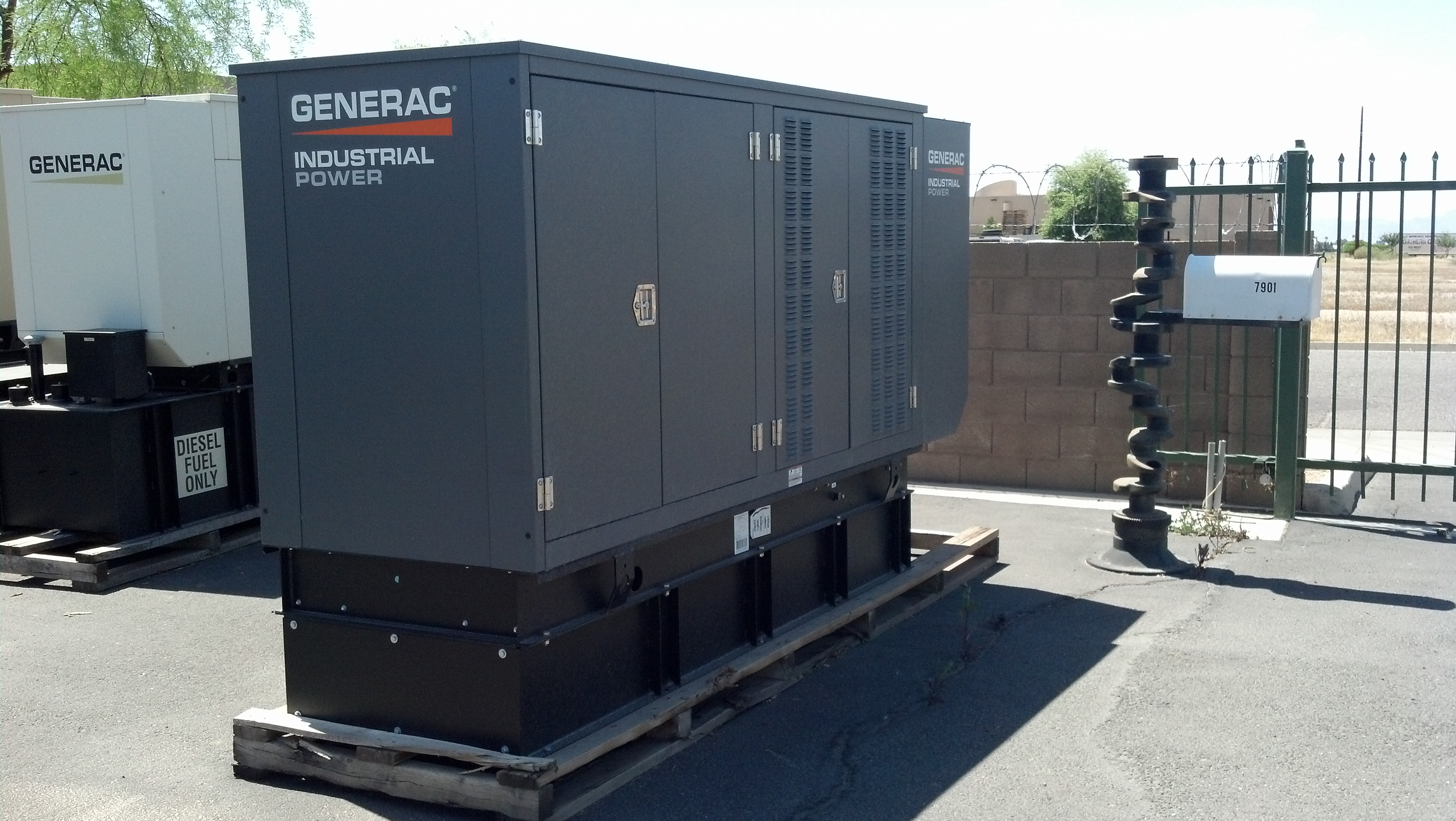

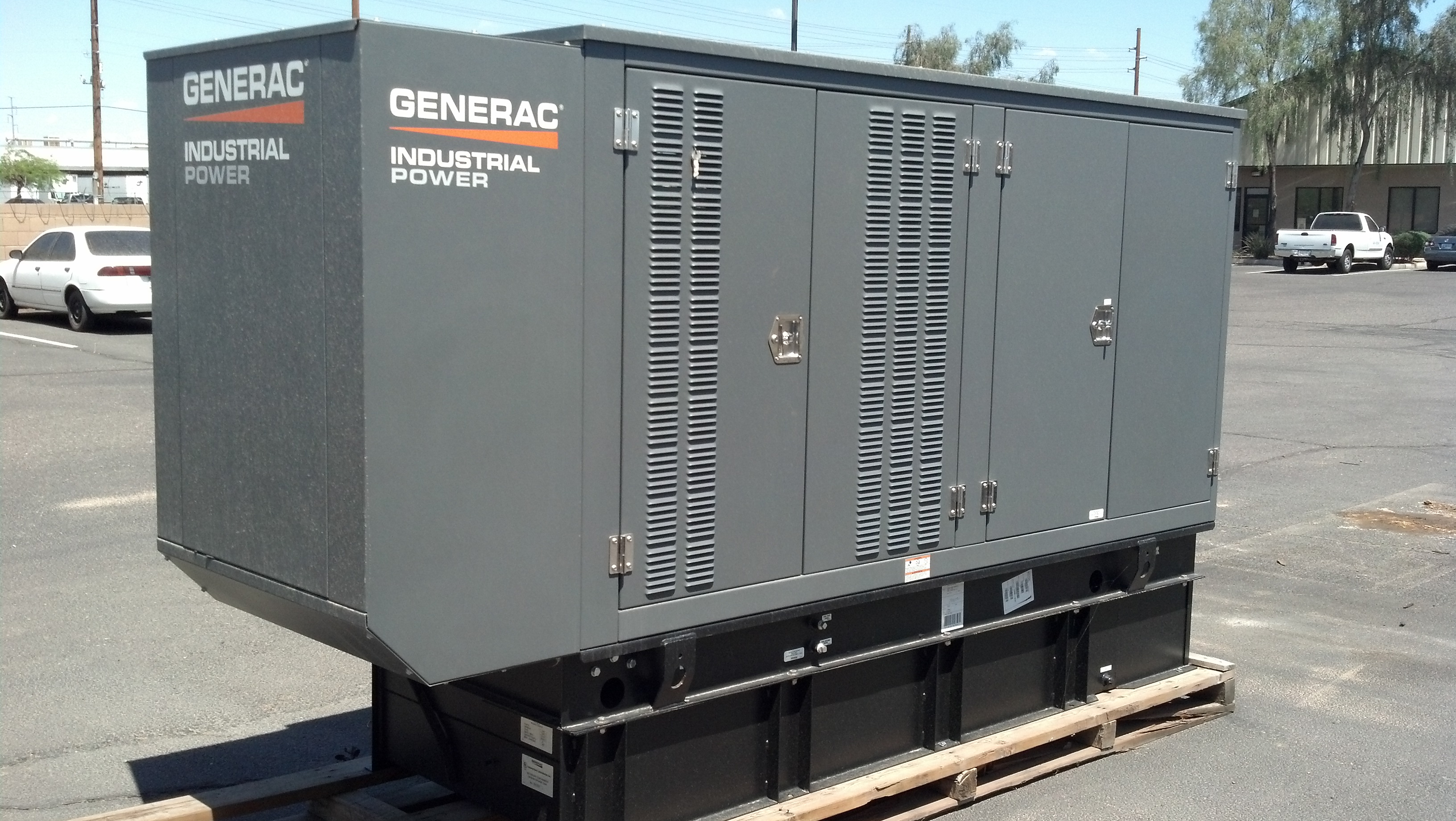

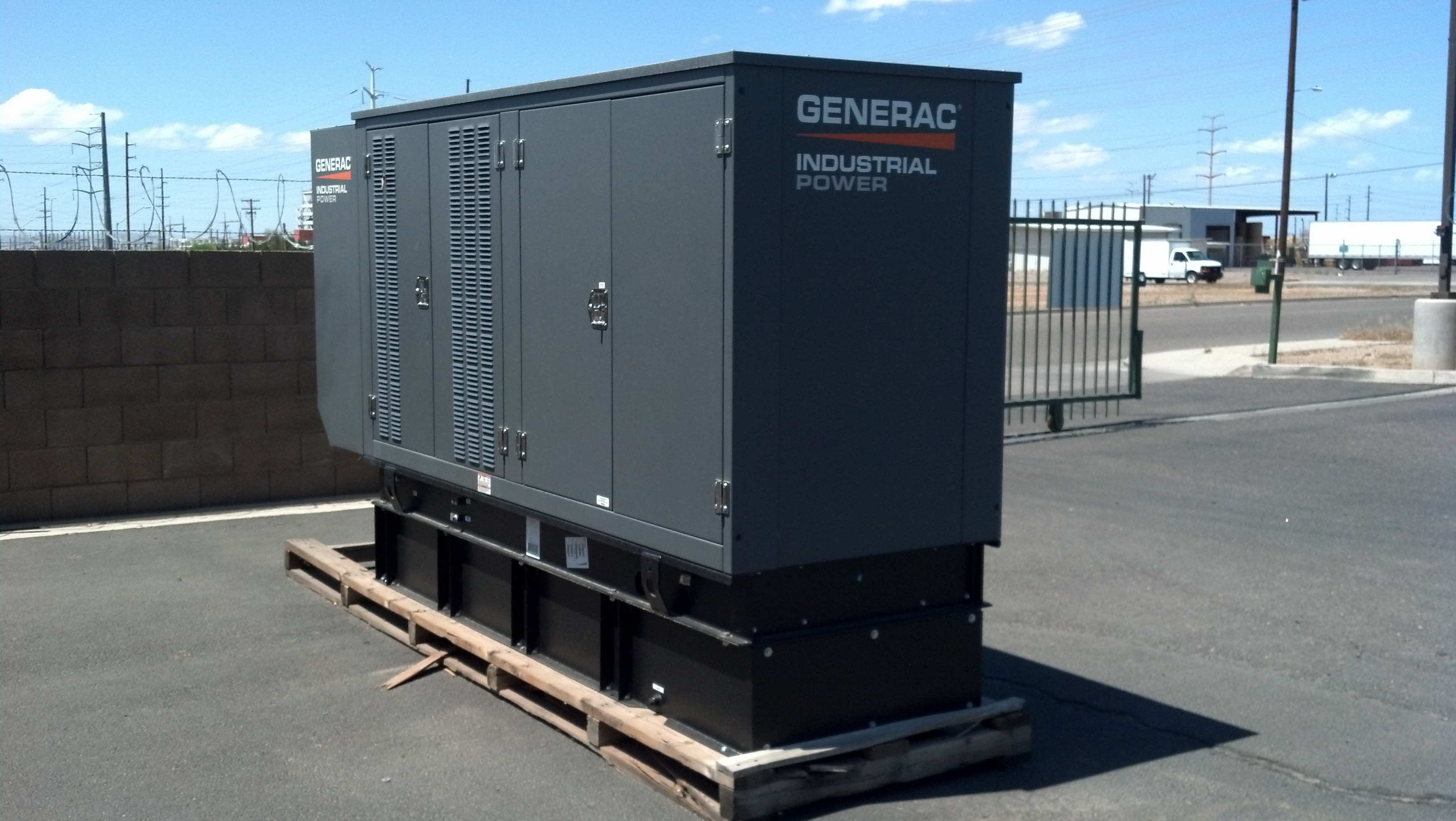

100kW Diesel Fueled Standby Generator Set and 400A Automatic Transfer Switch

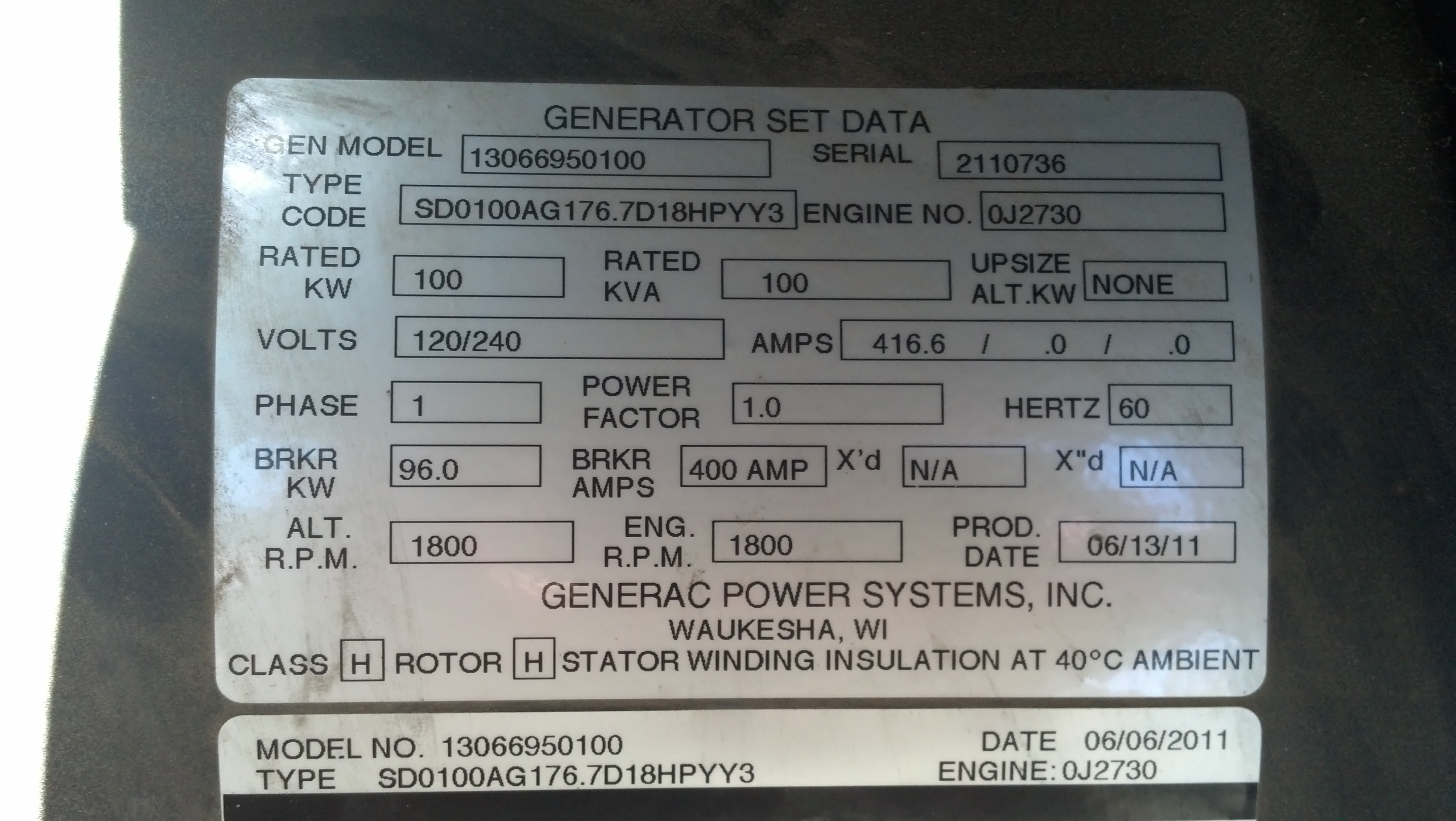

One (1) Generac model SD100 packaged generator set rated 100kW standby, 1 Phase, 120/240V,
60Hz @ 1800 RPM and 1.0 Power Factor, equipped as follows:
Iveco (6.7) Liter, EPA Certified, four cycle, water cooled diesel fueled engine
Electronic isochronous governor with +/- 1/4% frequency regulation
Generac AC generator - with brushless PMG excitation
Solid state automatic voltage regulator
Steel channel subbase
Elastomeric vibration isolation between engine/generator and mounting rails
Pad type vibration isolation pads for field installation under mounting rails
Radiator with blower fan and guards
Jacket water heater, 1500W, 120VAC, Single Phase
12V DC electric starting with battery charging alternator
Lead acid battery set with unit mounted rack and cables
Automatic battery charger, 10A, 120VAC, 1 Phase with:
DC Ammeter
DC Voltmeter
Automatic equalizer system
Fused AC input and DC output
Temperature compensated
Model "H" programmable automatic start/stop engine control and monitoring system with:
Two 4 line x 20 displays to monitor and display:
Three phase AC voltage
Three phase AC amperage
Kilowatts
Power Factor
Reactive power (kVAR)
Oil pressure
Water temperature
Water level
Fuel pressure
Engine speed
Battery voltage
Alternator frequency
Current Time and Date
Transfer switch status (requires HTS transfer switch)
Runtime hours
Service reminders
Trending
Fault history (alarm log)
Audible alarm for fault condition
Emergency Stop Pushbutton
Programmable engine control and monitoring module including:
Manual, off, auto switch
Four LED's to indicate:
1) Not in Auto
2) Alarm Active
3) Generator Running
4) Generator Ready
Communications via RS232, RS485 or optional modem
Shutdowns with indications for:
Overvoltage
Over-speed
Low oil pressure
High coolant temperature
Low coolant level
Weekly exerciser (programmable)
Digital voltage regulator with 3 phase sensing
Isochronous governor controller
Waterproof electrical connectors
Mainline circuit breaker, installed, 400A, 600V rated, with shunt trip & aux. contacts
Weather protective enclosure with generator set and exhaust system installed
8 function relay panel, surface mount
Exhaust silencer with SS flex connector and rain cap - installed
12" tall, 90 gallons (usable), approximately 12 hour run time, subbase fuel tank with:
UL142 listed - double wall construction
Emergency vent
Fuel Level Gauge
Leak detection alarm
Low fuel level alarm
1/2" NPT fuel supply and return connections
2 " NPT fuel fill with cap
4" NPT for emergency vent
1/2" NPT drain (plugged)
Electrical stub-up area 24"
One (1) Generac model GTS040 Automatic Transfer Switch rated and equipped as follows:
400A, 3 Pole, 1.0 Phase, 120/240V, 60Hz
NEMA 3R enclosure with hinged door and key-locking handle
Single coil design, electrically operated and mechanically held
Weekly exerciser - deluxe 7 day programmable
SPDT auxiliary contacts - one normal source, one emergency source
Silver plated or silver alloy main contacts
Conformal coating on all printed circuit boards
Switch position indicating lights - Normal, Emergency and Standby Operating
Three position switch - Fast Test, Auto, Normal Test
CPU microprocessor logic control with In-phase Monitor:
Adjustable utility voltage dropout, pickup and line interrupt
Engine minimum run - adjustable
Engine warm-up - adjustable
Return to utility - adjustable
Engine cool-down - adjustable
Standby voltage - adjustable
Standby frequency - adjustable
Time delay neutral - adjustable
Transfer on exercise - On/Off Switch
Warm-up timer bypass - On/Off Switch
Time delay neutral bypass - On/Off Switch
In-phase Monitor - On/Off Switch
Door mounted control switches
UL 1008 listed and CSA certified
ATS Physical Size: 48" H x 30.75" W x 12" D
ATS Weight: 325 Lbs
Lugged For:
Switch Terminal = 2 x 1/0 to 250 MCM or 1 x #4 to 600 MCM
Neutral Bar = 4 x #1 to 600 MCM or 2 x 1/0 to 250 MCM
Ground Lug = 1 x #6 to 350 MCM
WC Rating: 35 Kaic, circuit breaker rated 600 Amps Max
200 Kaic, Class J or T current limiting fuses, rated 600 Amps Max
