$ 11,000.00
Kaelus IQA-0850C PIM Analyze
Category
Test Equipment
Listed
Jan 20, 2016
Title
Kaelus IQA-0850C PIM Analyze
Price
$ 11,000.00
Condition
Used
Description

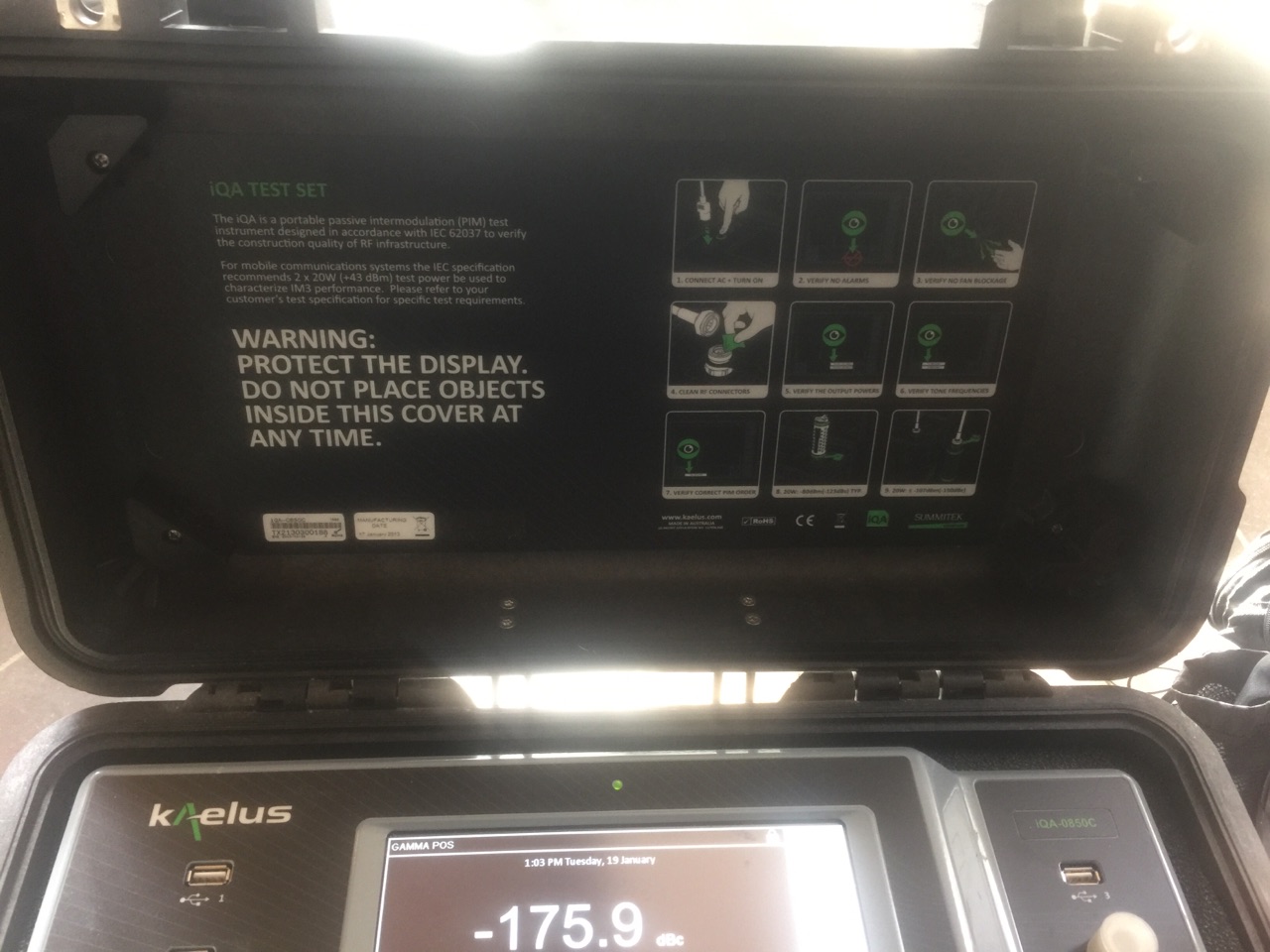

The iQA series Passive Intermodulation (PIM) analyzer is a feature rich,
high power PIM test solution. This field proven analyzer enables network
operators to improve site performance by finding and eliminating sources
of passive intermodulation in the RF path. The design includes an

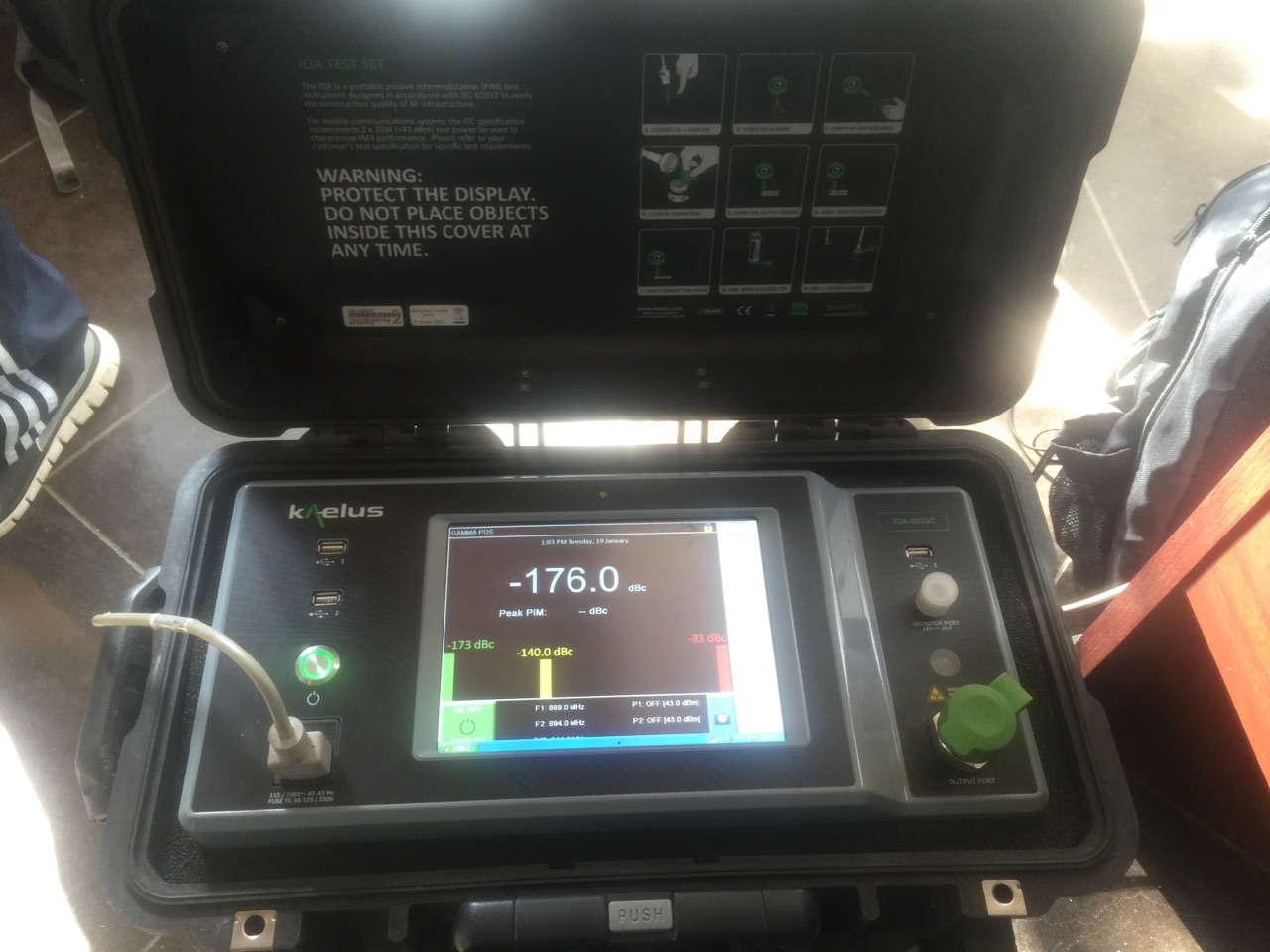

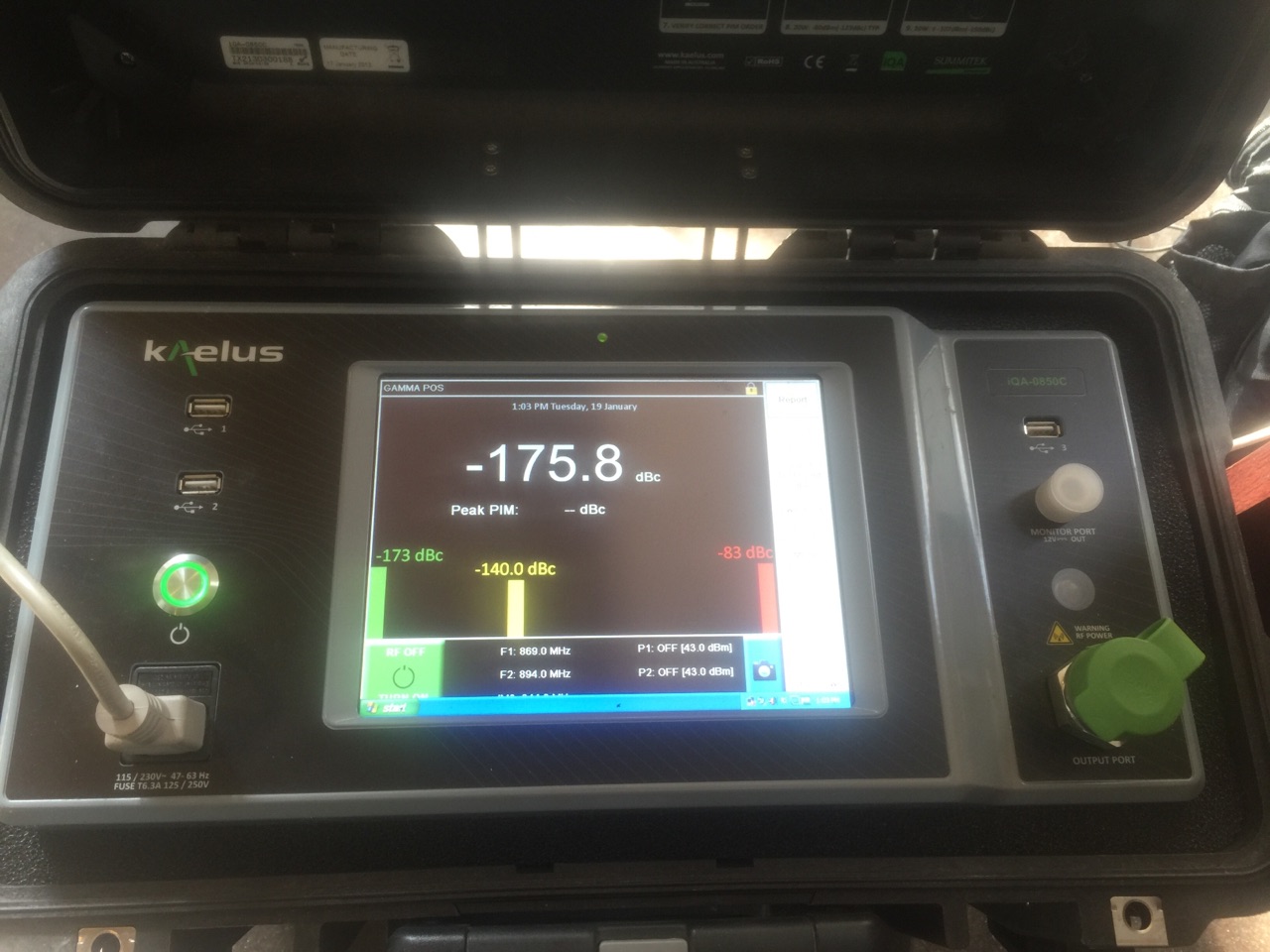

integrated panel PC with intuitive touch screen interface for performing
tests and generating site reports.
This version of the iQA ships from the factory enabled to support Range
to Fault (RTF) technology: with the purchase of an optional RTF module,
operators are able to activate RTF mode within the iQA user software to
accurately measure the distance to return loss faults as well as the
distance to PIM faults at the cell site.
RTF module sold separately.
PRODUCT FEATURES
* Rugged, reliable construction suitable for field use
* Fully configurable frequencies, powers and IM products

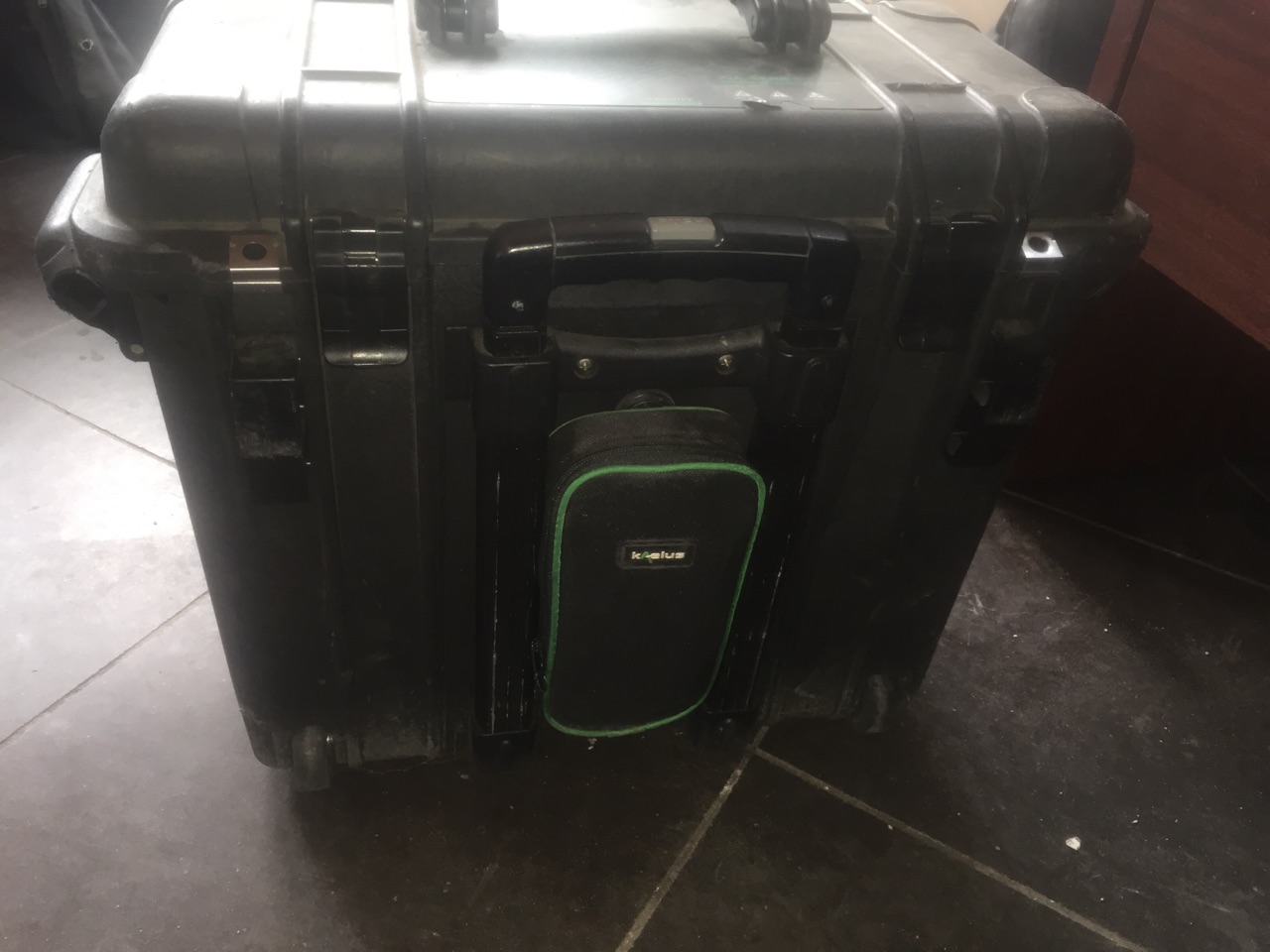

* Integrated polycarbonate transit case
* Simple to operate touch screen interface
* Range to Fault (RTF) enabled
* Spectrum monitor, frequency sweep and time trace modes
TEST & MEASUREMENT SOLUTIONS [2]
-------------------------
* Cable and Antenna Analyzers [3]
*
SYSTEM
Measurement method
Reverse (reflected) PIM, 3rd, 5th, 7th, 9th and 11th order
Residual PIM
< -115dBm/-158dBc max (<-125dBm/-168dBc typ) (x2 @ 43dBm)
User interface ports
3x USB, x1 LAN, 1x RF output (7-16 DIN female), 1x monitor port (N
female)
Display
8.4in (213mm) touch screen display
TRANSMITTER
Transmit frequencies
See model table
Frequency increment
100kHz
Frequency accuracy
± 5ppm (max), aging ± 1ppm (max) after first year
Power per tone (adjustable)
32mW to 20W, +15 to +43dBm (iQA-2600C +33 to +43dBm)
Power accuracy (per tone)
± 0.5dB (max)
RECEIVER
Receive band (100kHz steps)
See model table
Measurement noise floor
< -128dBm
Measurement range
-50dBm to -128dBm
ELECTRICAL
Mains power
115-230V, 50/60Hz AC
Power consumption
650W
MECHANICAL
Dimensions
19 x 18 x 12in (500 x 457 x 305mm)
Weight
< 50lbs (22.7kg)
Cooling
Forced air
ENVIRONMENTAL
Operating temperature range
-10°C to +40°C
Storage temperature range
-20°C to +60°C
Ingress protection (IP)
IP20 (with lid open) IP21 (with lid closed)
Relative humidity
5% to 95% RH non-condensing
Mechanical shock
Portable Passive Intermodulation Analyzer
The iQA series Passive Intermodulation (PIM) analyzer is a feature rich,
high power PIM test solution. This field proven analyzer enables network
operators to improve site performance by finding and eliminating sources
of passive intermodulation in the RF path. The design includes an
integrated panel PC with intuitive touch screen interface for performing
tests and generating site reports.
This version of the iQA ships from the factory enabled to support Range
to Fault (RTF) technology: with the purchase of an optional RTF module,
operators are able to activate RTF mode within the iQA user software to
accurately measure the distance to return loss faults as well as the
distance to PIM faults at the cell site.
RTF module sold separately.
PRODUCT FEATURES
* Rugged, reliable construction suitable for field use
* Fully configurable frequencies, powers and IM products
* Integrated polycarbonate transit case
* Simple to operate touch screen interface
* Range to Fault (RTF) enabled
* Spectrum monitor, frequency sweep and time trace modes
TEST & MEASUREMENT SOLUTIONS [2]
-------------------------
* Cable and Antenna Analyzers [3]
*
SYSTEM
Measurement method
Reverse (reflected) PIM, 3rd, 5th, 7th, 9th and 11th order
Residual PIM
< -115dBm/-158dBc max (<-125dBm/-168dBc typ) (x2 @ 43dBm)
User interface ports
3x USB, x1 LAN, 1x RF output (7-16 DIN female), 1x monitor port (N
female)
Display
8.4in (213mm) touch screen display
TRANSMITTER
Transmit frequencies
See model table
Frequency increment
100kHz
Frequency accuracy
± 5ppm (max), aging ± 1ppm (max) after first year
Power per tone (adjustable)
32mW to 20W, +15 to +43dBm (iQA-2600C +33 to +43dBm)
Power accuracy (per tone)
± 0.5dB (max)
RECEIVER
Receive band (100kHz steps)
See model table
Measurement noise floor
< -128dBm
Measurement range
-50dBm to -128dBm
ELECTRICAL
Mains power
115-230V, 50/60Hz AC
Power consumption
650W
MECHANICAL
Dimensions
19 x 18 x 12in (500 x 457 x 305mm)
Weight
< 50lbs (22.7kg)
Cooling
Forced air
ENVIRONMENTAL
Operating temperature range
-10°C to +40°C
Storage temperature range
-20°C to +60°C
Ingress protection (IP)
IP20 (with lid open) IP21 (with lid closed)
Relative humidity
5% to 95% RH non-condensing
Mechanical shock
Specifications
